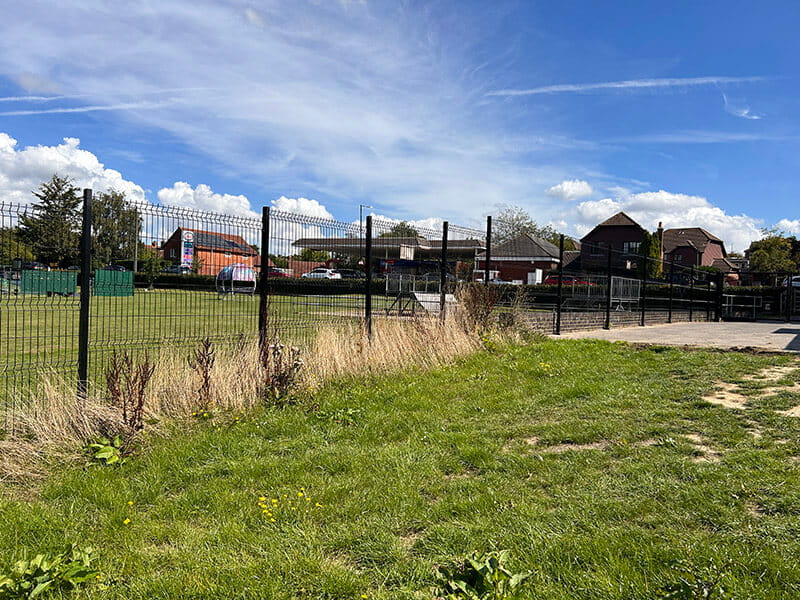

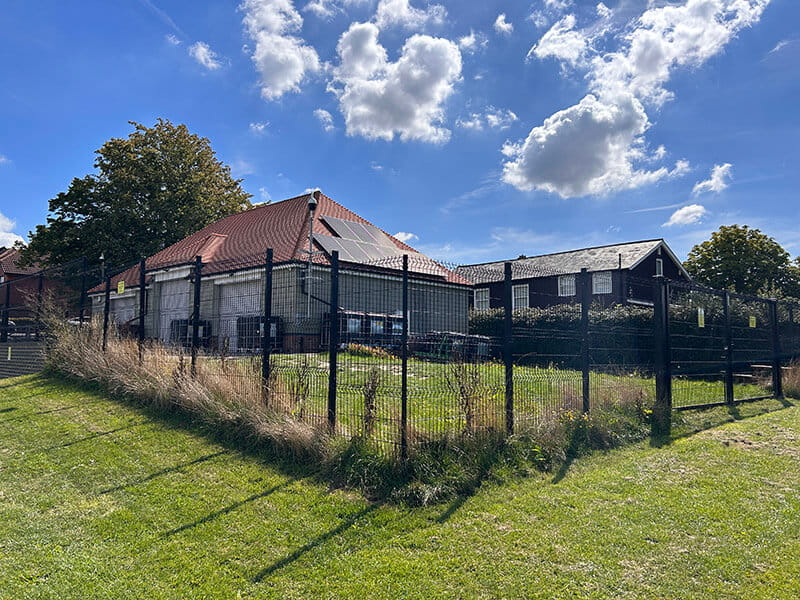

V mesh welded mesh fencing system
EuroGuard® Regular | Welded Mesh Panel

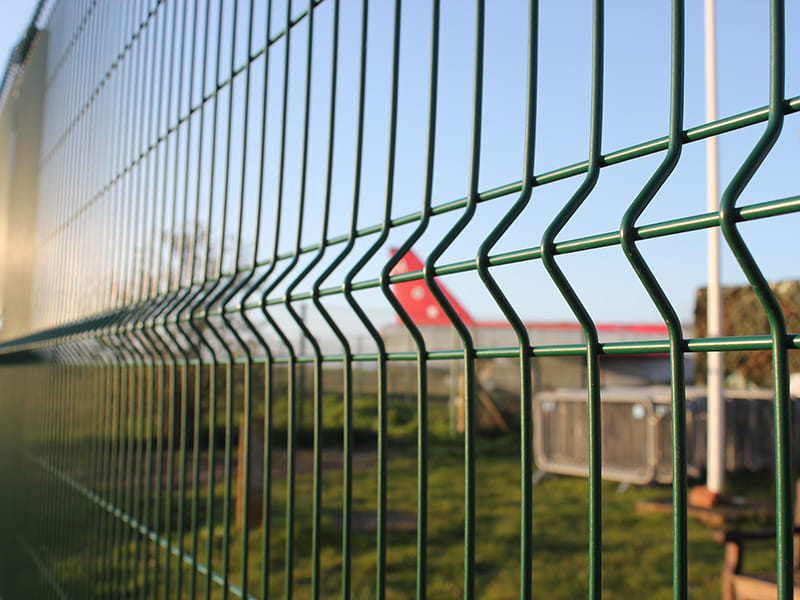

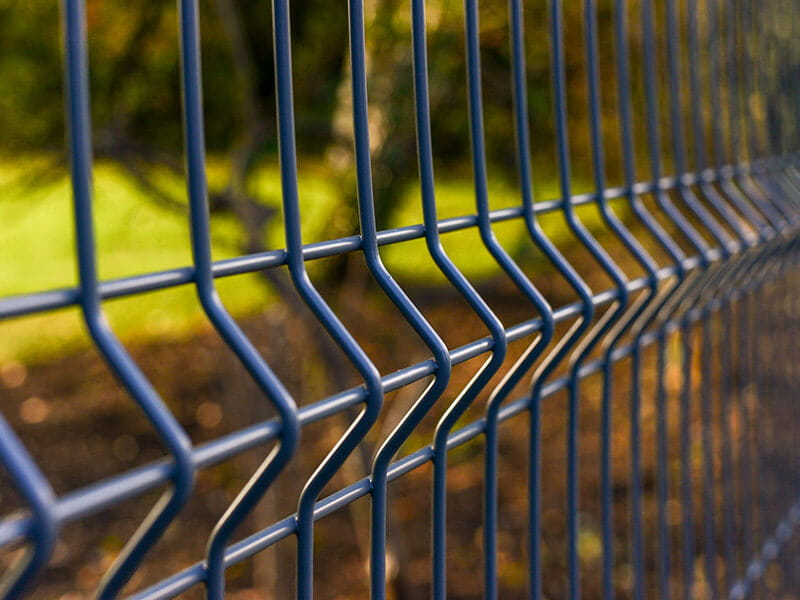

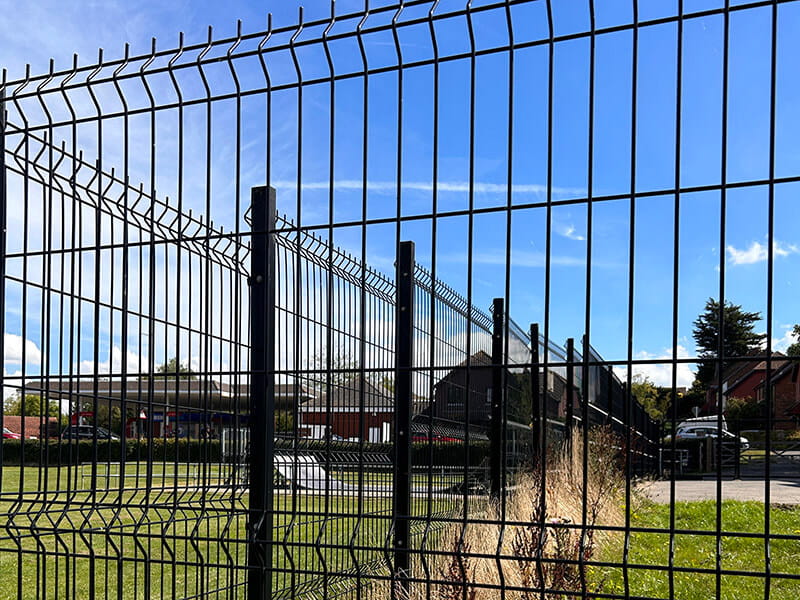

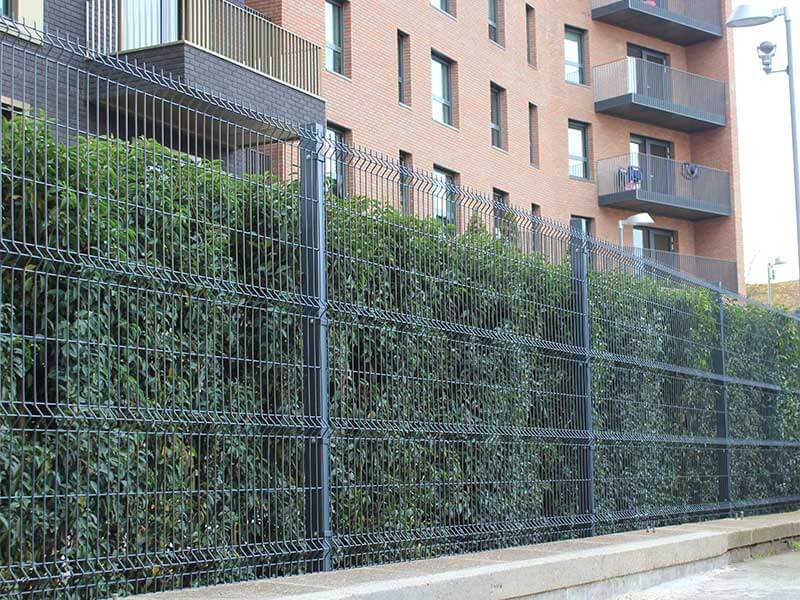

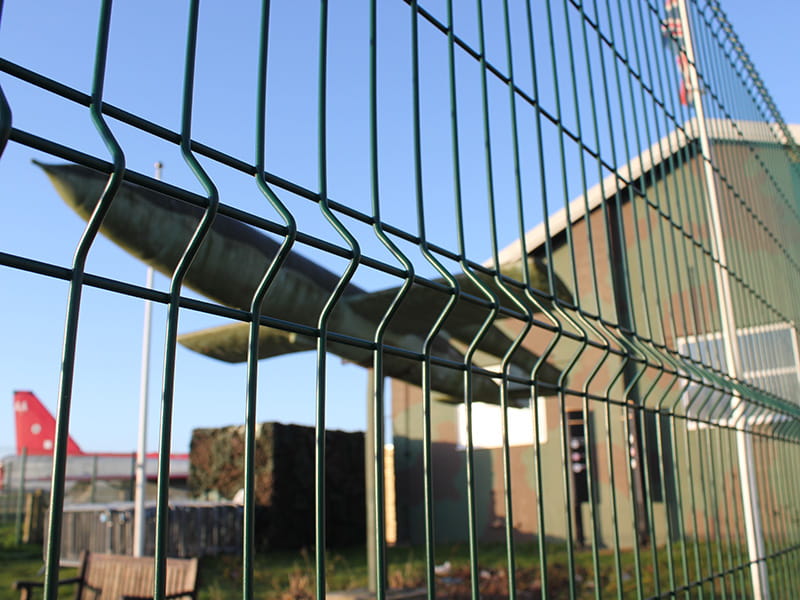

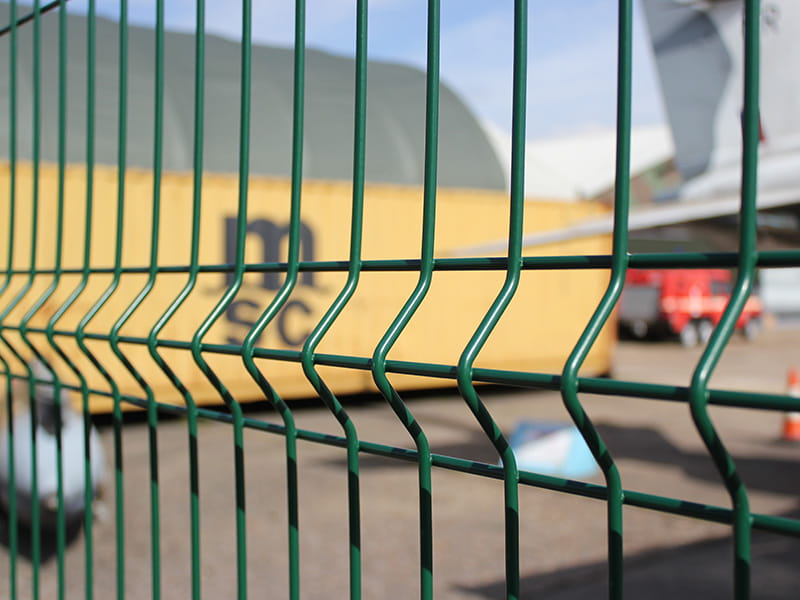

EuroGuard® Regular is ideal for residential areas, commercial properties, schools or car parks. The V shaped profile reinforcing folds increase the panel’s rigidity and strength. Panels can be stacked above one another to deliver a higher fence.
EuroGuard® Regular correspond(s) to the generic component/material "weld mesh" in the BRE Global Guide online generic specification(s) "Galvanised weld mesh fencing with metal posts" which achieve(s) a summary rating of A within commercial, domestic, residential, health, industrial, education.
25 year service life guarantee
Installation
We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.
EuroGuard® Regular Features
- Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®
- Mesh 200 x 50mm centres with 45mm gap, 5mm wire (wire measured prior to coating)
- Anti-climb design
- V mesh design offers strength and security without an intimidating appearance
- Unique vandal-proof panel to post fixings
- 3 - 4 reinforcement folds according to height
- Can be stepped to accommodate sloping ground
- Matching single leaf and double leaf gates available
Panels
Panels 3000mm wide with 200 x 45mm mesh, 5mm wires with 3 - 4 reinforcing folds according to height, Galfan® Zinc alloy treated as standard. Vertical wires are at 50mm centres, therefore the panel has 61 vertical wires.
Gates
We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.
Browse Gates
EuroGuard® Regular Panel Specifications
| Height (mm) | Post Centres (mm) |
Post Dimensions (mm) |
Overall Post Lengths (mm) |
| 1525 | 3034 | 60 x 40 | 2100 |
| 1810 | 3034 | 60 x 40 | 2500 |
| 2010 | 3034 | 60 x 40 | 2800 |
| 2410 | 3054 | 80 x 60 | 3300 |
Post Options
Standard Finishes
Explore our finishes
Standard Colours
Standard powder coating colours:
Mesh Security Fencing Clips

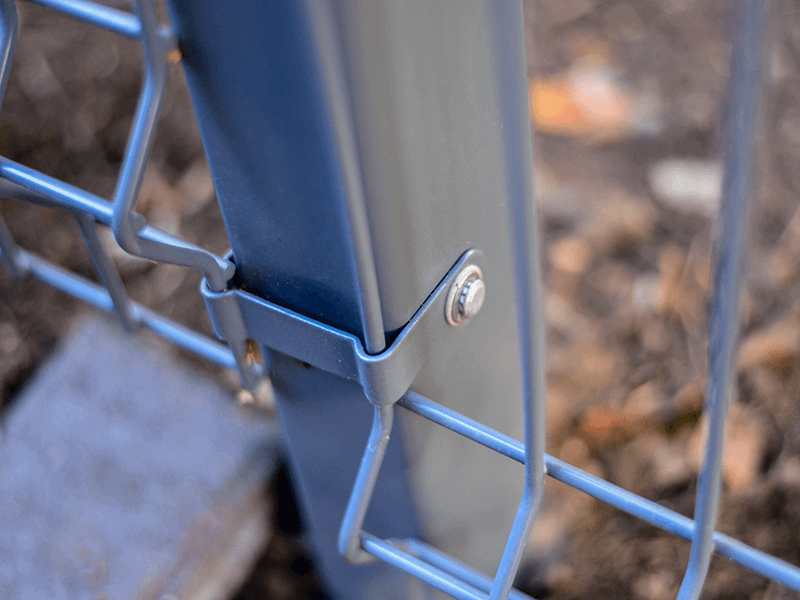

Our EuroGuard® range features unique panel to post connectors with tamper proof fixings which can only be reached from inside the fence line, while generic mesh clips are installed on the outside of the fence line and generally use standard torx screws that can be removed using a standard DIY toolkit. Find out more in the video below.
Document Downloads
Download specification documents, drawings and case studies for this product
Applying EurOGuard® Regular In a School Environment
Our V mesh fencing was installed in Northwood School as part of a £35 million regeneration project that included over 650m of our fencing and gates. Find out more by watching the video.
Welded Mesh Panel Range
We have a wide range of welded mesh panels, all with a 25 year guarantee. Browse individual products or view the full range below.
View Range
Specify this product on NBS Source
