Vertical bar and welded mesh security fence

Trident® 4 | Security Fencing

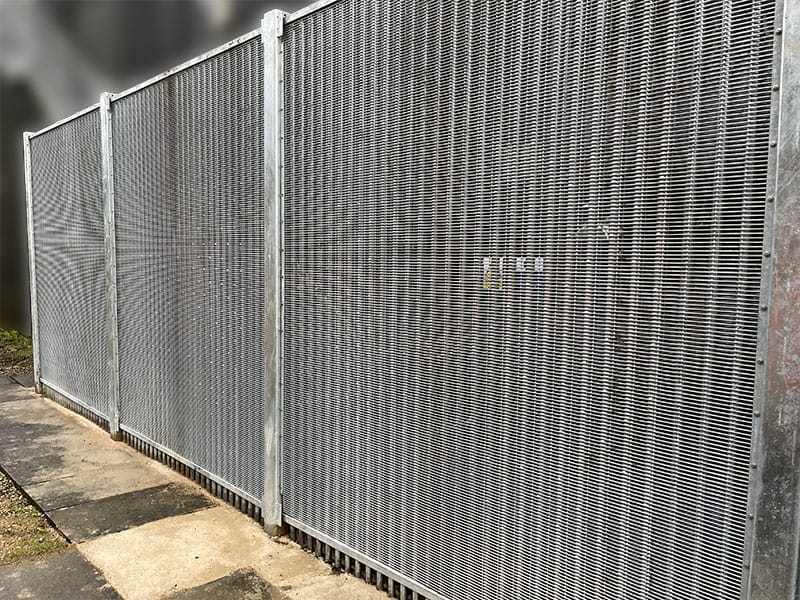

To achieve a security rating of D10, our fencing had to delay several attacks using category D tools such as steel wedges, a small disc grinder, jigsaw, felling axe, and sledgehammer, each lasting at least 10 minutes. Fence panels comprise of reinforced 32mm tubular vertical bars welded within 60 x 40mm horizontal rails. The panels incorporate 358 mesh panels are welded on both faces, with an optional 800mm concertina barbed tape topping.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Trident® 4 Features

  • LPS 1175 D10 (SR4) approved
  • Closely spaces pales of substantial wall thickness
  • Incorporating cut-delay technology
  • Jaktronic® PIDS compatible
  • SR4 gates available



LPCB product page logo banner

Panels

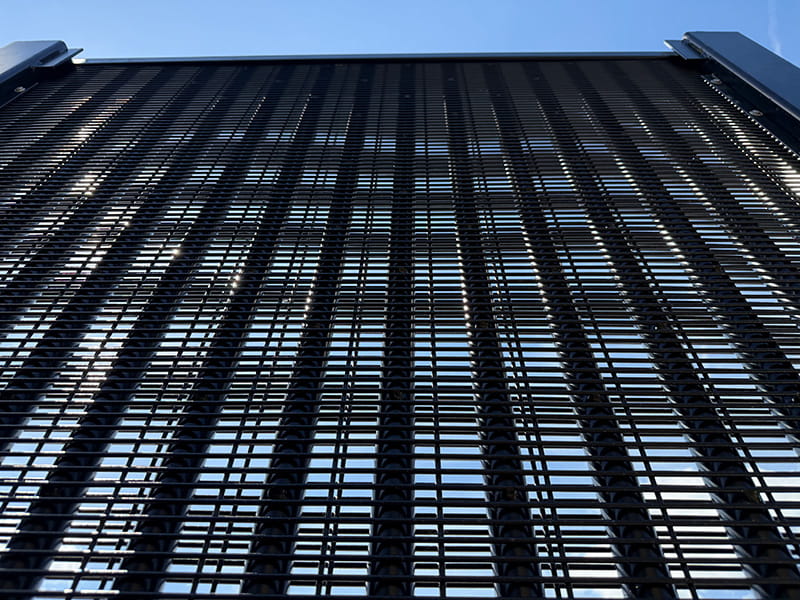

The fence panels comprise of reinforced 32mm tubular vertical bars welded within 60 x 40mm horizontal rails. The panels incorporate 358 mesh panels welded to both faces, self-healing and cut-delay technology and 800mm concertina barbed tape topping.

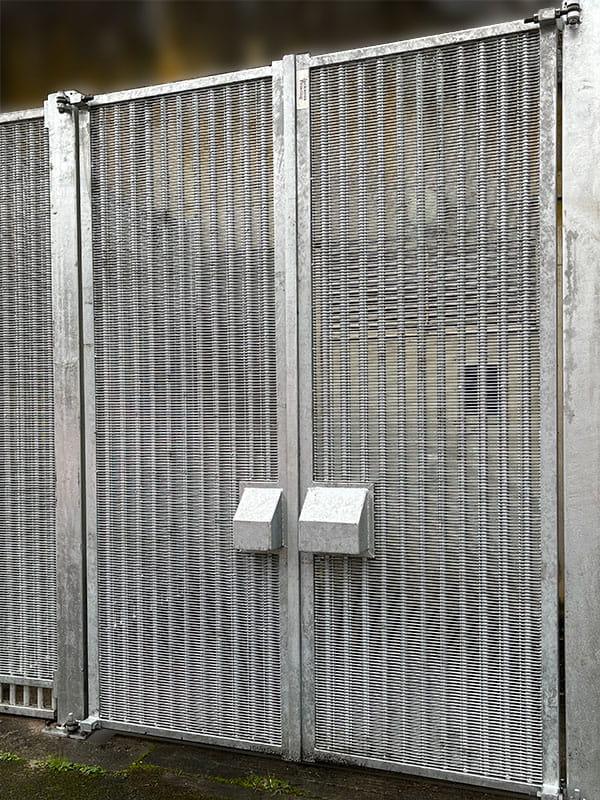

Gates

SR4 gates available

Trident® 4 Panel Specifications

Height (mm) Panel Width (mm)
Post Dimensions (mm)
Topping
3600 2570 120 x 120 Concertina barbed wire

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    Standard Finishes
  • Hot dip galvanised to BS EN 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coating to non standard BS or RAL to special order
  • Marine coating for applications near sea water (optional extra)
  • Explore our finishes below

    Finishes

    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Redbook Live Certificates

    View and download certificates for this product on RedBook Live.

    Fencing

    Document Downloads

    Download specification documents, drawings and case studies for this product

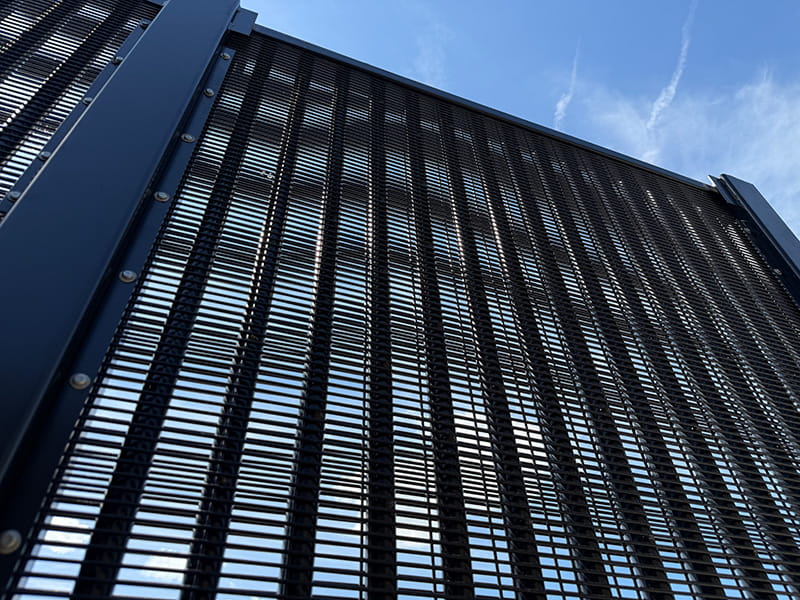

    LPS 1175 D10 fencing

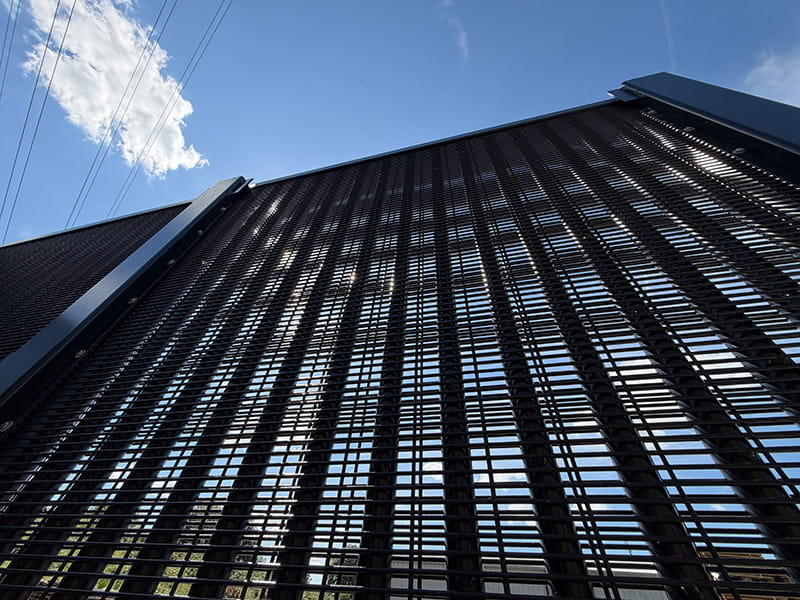

    About D10 (SR4) Fencing

    D10 fencing has been tested and certified to withstand experienced attempts at forced entry after undergoing the LPS 1175 test devised by LPCB. During testing, our fencing had to delay several attacks using category D tools such as steel wedges, a small disc grinder, jigsaw, felling axe, and sledgehammer, each lasting at least 10 minutes, providing it with a rating of D10 under Issue 8, the equivalent of SR4 under Issue 7. Find out more here.
