Hostile Vehicle Mitigation
Linebacker® PAS 68 Shallow Foundations | Crash Barrier
Jacksons' Linebacker® is a cable crash fence and gate system which has been successfully rated in accordance with BSi PAS 68:2010 for the performance of vehicle security barriers and their supporting foundations when subject to a single horizontal impact.

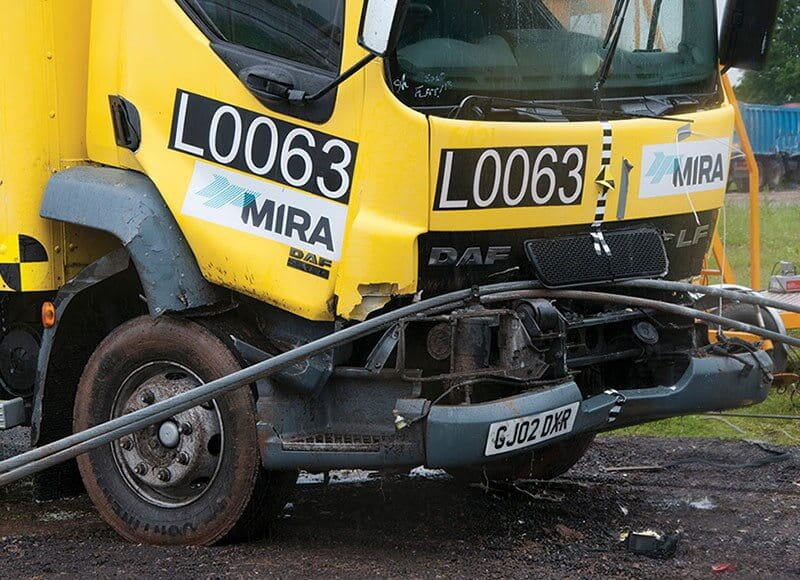

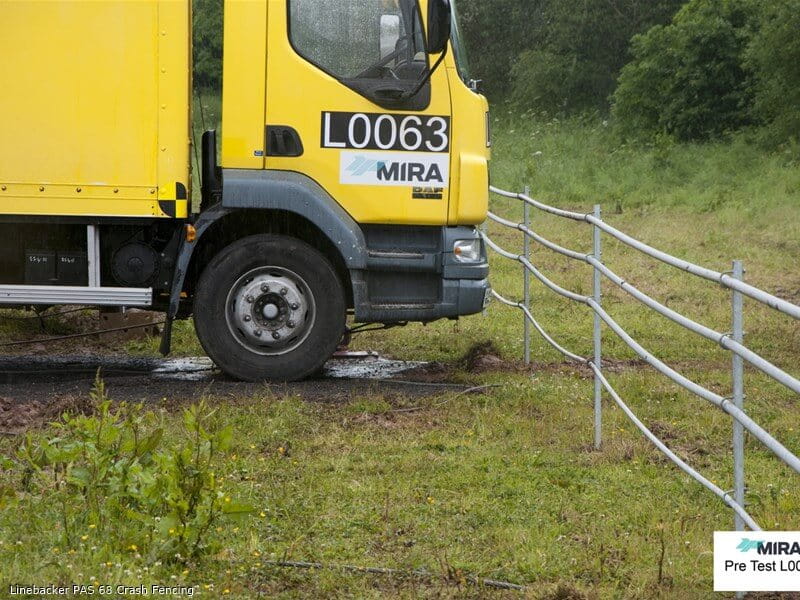

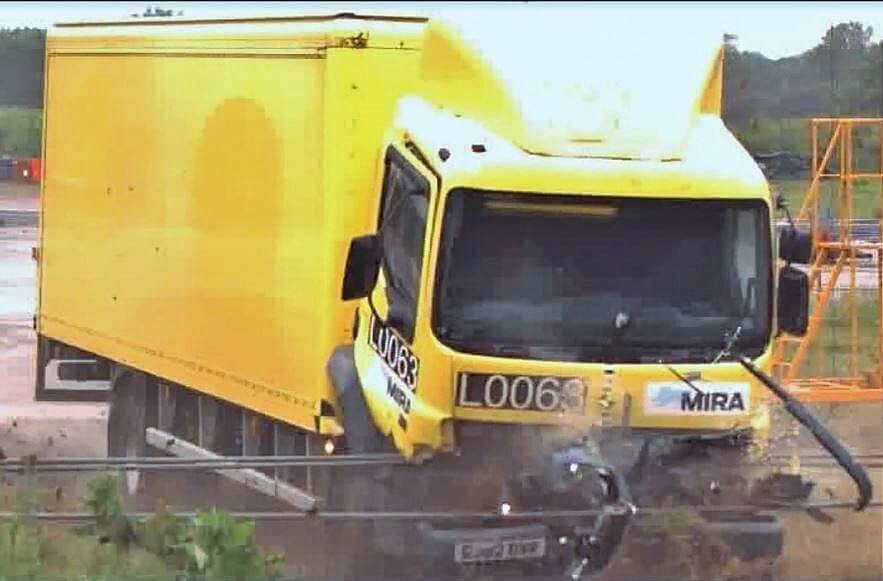

Linebacker® PAS 68 Crash Fence is rated to stop a 7.5 tonne vehicle travelling at 50 mph (80km/h). The system may be used as a stand-alone system and may be retrofitted to any existing security fence.
Linebacker® PAS 68 Crash Barrier Features
- PAS 68 Crash Fence certified to stop a vehicle of 7.5 tonne mass travelling at 50mph (80km/h)
- Timber post and rail ‘dressing’ option available
- Stand-alone system for outer boundary protection or target hardening within a perimeter
- Maybe retrofitted to reinforce any existing security fence
- Shallow foundations
- V/7500(N3)/80/90:7.3/21.4
Approvals
Options
Also available with timber cladding to create a discreet post and rail fence.
Linebacker PNRSpecification
Linebacker® Specification
| Height (mm) | Post Centres (mm) |
Max Straight (m) | Min Straight (m) |
| 1150 | 6000 | 175 | 25 |
Document Downloads
Download specification documents, drawings and case studies for this product
