Different Styles of Welded Mesh Panels

Welded mesh fencing consists of steel wire strands which are welded together to form a high-strength, rigid mesh panel. From light mesh, suitable for pet enclosures and residential settings, to heavier styles for high-security and commercial applications, there’s a wide range of welded mesh fencing to choose from.

Due to its design, welded mesh fencing offers better visibility for surveillance, such as CCTV, than solid styles of fencing such as timber panels or steel palisade. Perimeter Intrusion Detection Systems (PIDS) can also be installed discreetly to provide enhanced levels of security.

Welded mesh panels combine strong security with attractive design; mesh won’t obstruct plant growth, so thorny shrubs and plants can grow alongside the fencing to provide additional protection. It’s also an unlikely target for graffiti as it lacks a flat surface. It’s lightweight and easy to install yet robust, resisting damage from strong winds as the open mesh allows wind to pass through open apertures.

What are the different styles of welded mesh fencing?

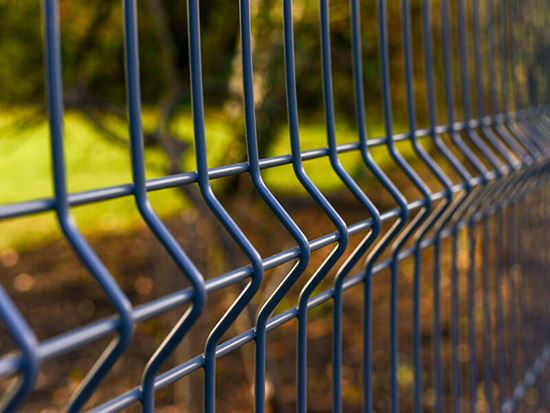

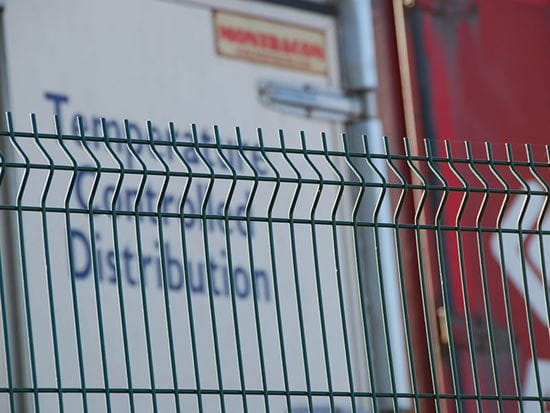

V Mesh

V mesh welded panels are made up of horizontal “V” fold projections woven together to form a unique profile. The V projections in the panels increase rigidity and strength, so they are less prone to damage or deformation. They offer high visibility due to their tall, narrow apertures which equally make them difficult to climb as they don’t provide a foothold. An additional polyester powder coating is often applied to the panels, with green being a popular colour to help blend into the surrounding environment, making them an attractive option that also offers high security, ideal for schools, parks, sports pitches, zoos and other applications. At Jacksons, we manufacture two different types of V mesh fencing, EuroGuard Regular and EuroGuard Extra. EuroGuard^® Regular v mesh panels feature 200 x 50mm mesh, while EuroGuard^® Extra mesh fence panels feature 200 x 30mm mesh for increased protection against climbing and more rigidity. Both panels have 5mm wires measured before coating and welded at intersections.

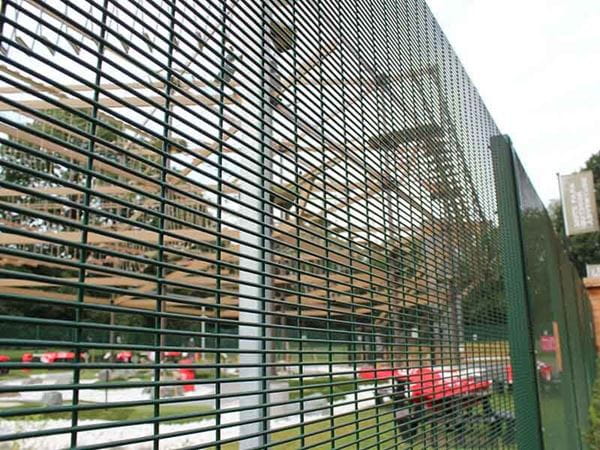

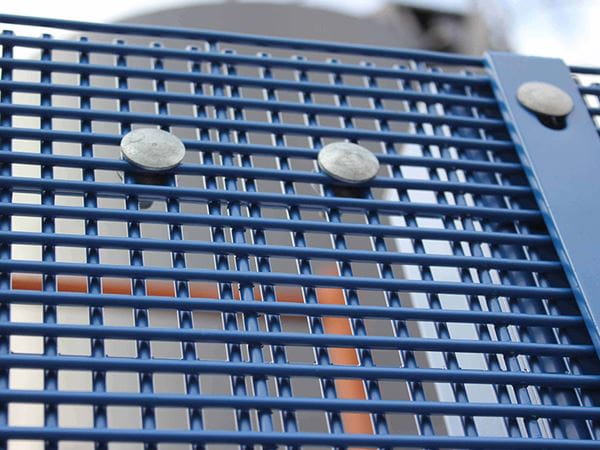

358 or Prison Mesh

358 mesh fencing like our Securi-Mesh^® is best suited for higher security applications, such as prisons and data centres, but its inconspicuous design is also well-suited for schools, leisure facilities, sports grounds and stadiums in high-risk areas. The panels have close-knit apertures which still provide excellent visibility but offer increased protection from climbing with no foot or finger holds available. Additionally, its design prevents items being passed through and makes it challenging to cut; we also manufacture LPS 1175 approved 358 mesh fencing, certified to SR1/A1. Our unique panel to post fixings overlap panels, also preventing the fencing from being removed or damaged.

Double layer mesh

An extra layer of mesh provides an additional layer of protection and strength, offering both anti-climb and anti-cut protection against hand or power tools (when NPSA/LPS 1175 approved) whilst also preventing objects from being passed through the fence. With welds at each intersection for additional strength, and overlapping panels at posts, our double layer mesh (Securi-Mesh^® Plus) exceeds UK Government specifications for use in prisons. It’s also well suited for use in high-security facilities such as data centres, water treatment plants and other Critical National Infrastructure.

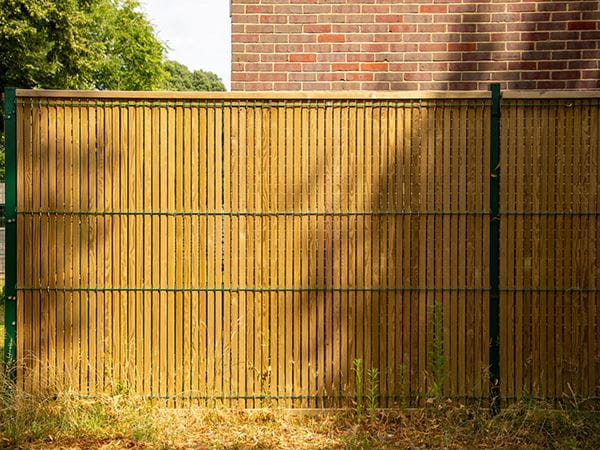

Timber/steel combination

Timber/steel combination mesh fencing such as EuroGuard^® Combi consists of a welded mesh fence panel overlaid with timber slats that partially cover the wires. For rural properties that require higher security (for example farms or country estates),schools and storage areas (e.g. bin stores), this versatile style of welded mesh fencing offers greater levels of privacy and strength that than provided by either timber or mesh fencing alone. The natural look of timber is aesthetically pleasing and complements any environment, whilst providing the strength of steel.

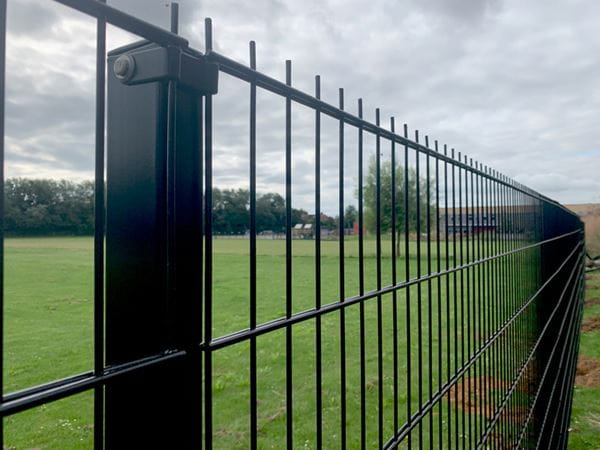

868 and 656 Mesh Fencing

Also known as twin wire mesh fencing (and known to Jacksons as EuroGuard^® Flatform), 656 or 868 mesh security fencing is a highly durable security solution featuring two horizontal wires, creating a robust and rigid panel. This structure enhances strength, improving its resistance to impact and deformation. It is commonly used in schools, commercial premises, and industrial sites where a balance of security and visibility is required.

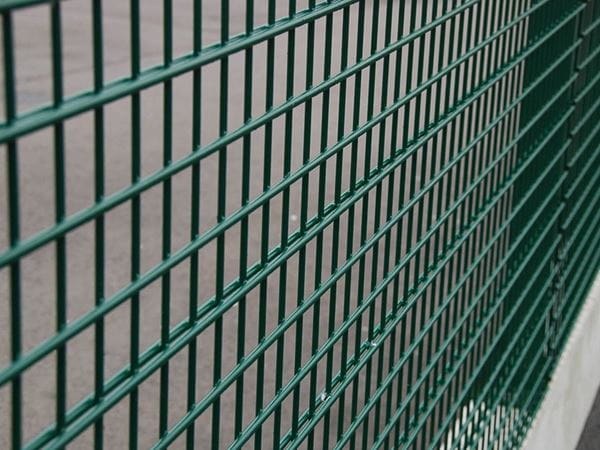

Sports Mesh Fencing

Sports mesh fencing, such as EuroGuard^® Rebound, is specifically designed for sports facilities and high impact environments. Featuring tightly spaced horizontal wires, it offers superior rebound characteristics for ball games, reducing the risk of damage while ensuring a long-lasting fencing solution. This type of mesh is ideal for multi-use games areas (MUGAs), playgrounds, and school sports pitches, providing durability, safety, and excellent visibility for spectators and security monitoring.

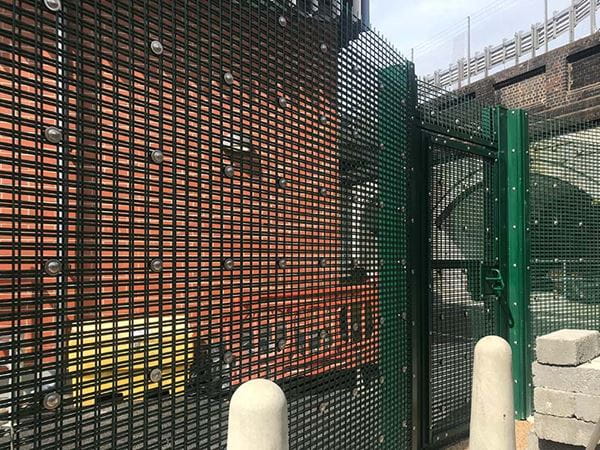

High Security Mesh Fencing

UHS Heavy and UHS Extreme mesh fencing are unique to Jacksons, providing two mesh security fencing options which are tested and certified to LPS 1175 SR3. These systems feature double skinned reinforced welded mesh panels with small apertures that prevent climbing, cutting, or tampering. The combination of robust materials and advanced design ensures resilience against forced entry attempts, making them an ideal choice for critical infrastructure protection.

All of our welded mesh security fencing features wire gauge measurements before coating for an accurate representation of strength and durability, and compared to other mesh alternatives on the market, our apertures are usually smaller, due to more wires used per panel. It is worth checking these specifications side by side.

For more advice on our full range of welded mesh fencing panels and to explore their suitability for your project, contact us today.
